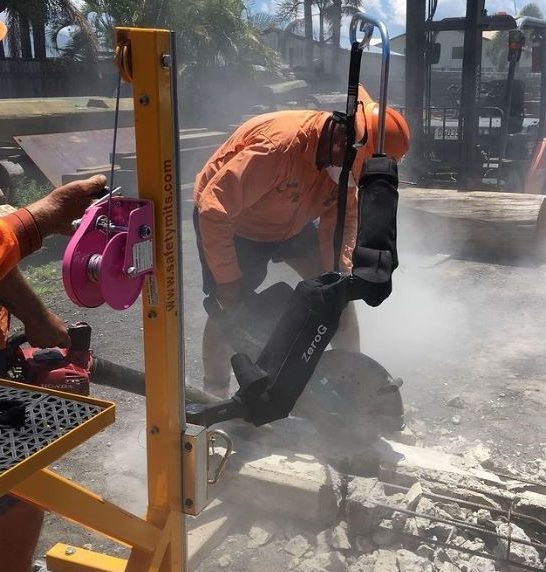

Zero G Concrete

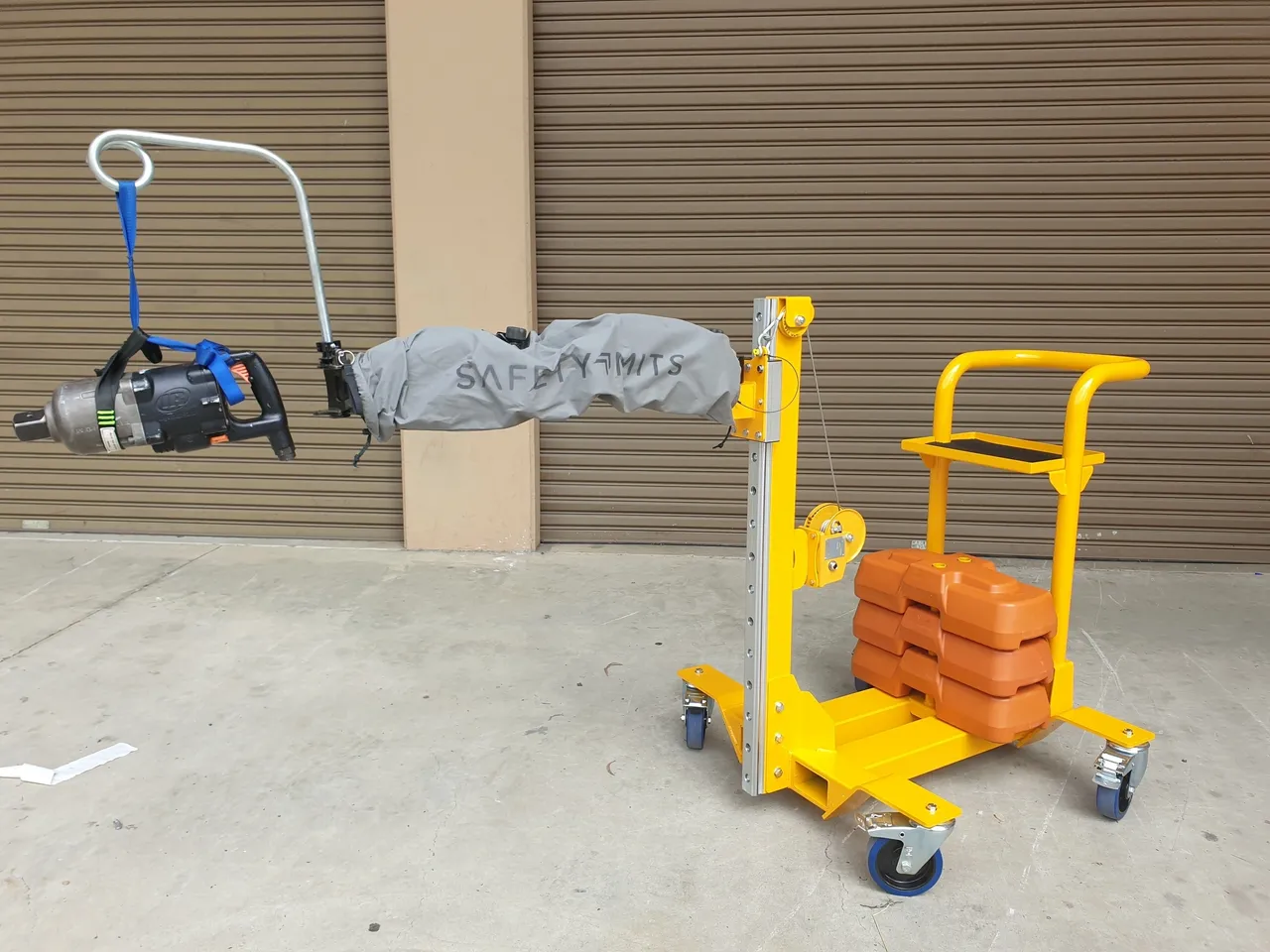

Workshop Trolley with Zero G Arm
19kg-Tool-Payload-workshop-trolley-image

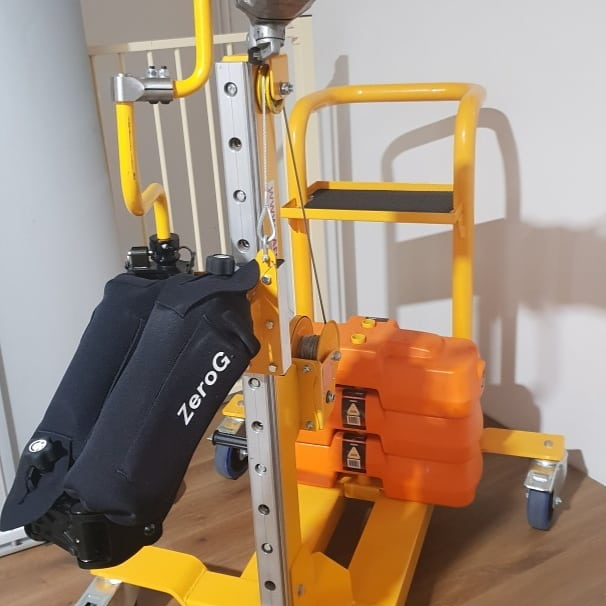

Zero G Wst New 2020
Zero G Ergonomic Tool Support Systems

Zero G 1.2m Workshop Trolley System 19kg Tool Payload w/ Pigtail Tool Holder & Slings

Item Code: ZG-SYS-WST-121

The Safety Mits Zero G Workshop Trolley System is designed to make handling heavy tools such as impact wrenches, grinders, and pneumatic hammers easier and safer. With a payload capacity of up to 19kg, this system utilises an innovative Zero Gravity Arm to reduce strain, allowing for effortless movement of tools in any direction. The compact mobile trolley features a 1.2m mast height, adjustable tool height, and a large working range, improving safety and efficiency in industrial environments. Perfect for reducing worker fatigue and enhancing productivity, this system is ideal for heavy engineering and mining workshops.
Enquire Now
Overview
Features
Specifications
Diagram

Overview

The Safety Mits Zero G Workshop Trolley System is a ground breaking solution designed to eliminate the strain and fatigue of handling heavy tools in industrial and mining environments. This system allows workers to effortlessly manage tools like impact wrenches, nut runners, grinders, and chipping hammers, as if they were weightless, improving both safety and efficiency.

With a working tool payload of up to 19kg, this Safety Mits Zero G Workshop System can be adapted for use with most heavy hand tools used in mining and heaving engineering workshops.

The entry model Safety Mits Zero G workshop system is supplied complete with a compact mobile trolley, patented balancing system arm and “Pigtail” tool arm and lanyards. Other tool mountings available on request.

Utilising spring tension and innovative design to balance the weight of tools used in bolt tensioning, drilling, sanding, riveting and many other applications the Safety Mits Zero G workshop system is fast becoming the latest technology to improve safety, efficiency and quality in heavy industry. Capable of holding tools weighing up to 19kg fully balanced allowing the user to freely, safely and accurately move heavy tools in any direction without injury or risk of fatigue.

Features

  • Payload Capacity: Supports tools weighing up to 19kg, with an operating range of 4.5kg to 19kg.

  • Tool Functioning Arc: Offers a vertical range of 0-1400mm and a horizontal arc range of 2200mm.

  • Balancing System: Equipped with a Zero G single-link balancing arm and a 450mm link arm extension with a locking pin.

  • Mounting and Docking: Quick connection mounting via a Zero G fixed axis mounting block with a locking pin and gravity docking assembly.

  • Mobile Trolley: Includes a compact mobile trolley with a 1.2m mast height, winch-operated tool height adjustment, counterweights, and a bench.

  • Dimensions: Trolley footprint: 950mm (W) x 1100mm (L) x 1330mm (H).

  • Custom Tool Mountings: Additional tool mountings available on request.

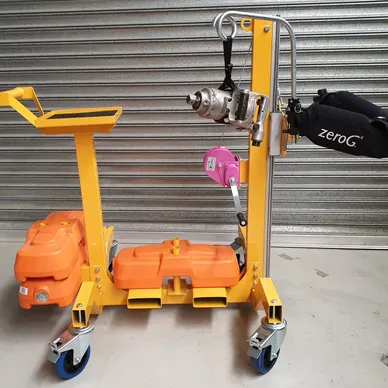

Images shows an impact wrench attached to the tool arm. The wrench is not included in the system.

Specifications

  • Reduces Stress and Strain: Makes heavy tasks easier and minimizes worker fatigue.

  • Increases Productivity: More uptime, reduced worker injuries, and improved craftsmanship.

  • Enhanced Safety: Safely manoeuvre heavy tools like impact wrenches, pneumatic hammers, grinders, and more.

  • Improved Worker Morale: Less wear and tear on workers, resulting in fewer injuries and better overall performance.

The Safety Mits Zero G Workshop Trolley System is the ideal solution for industries that require handling heavy equipment with precision, safety, and efficiency.

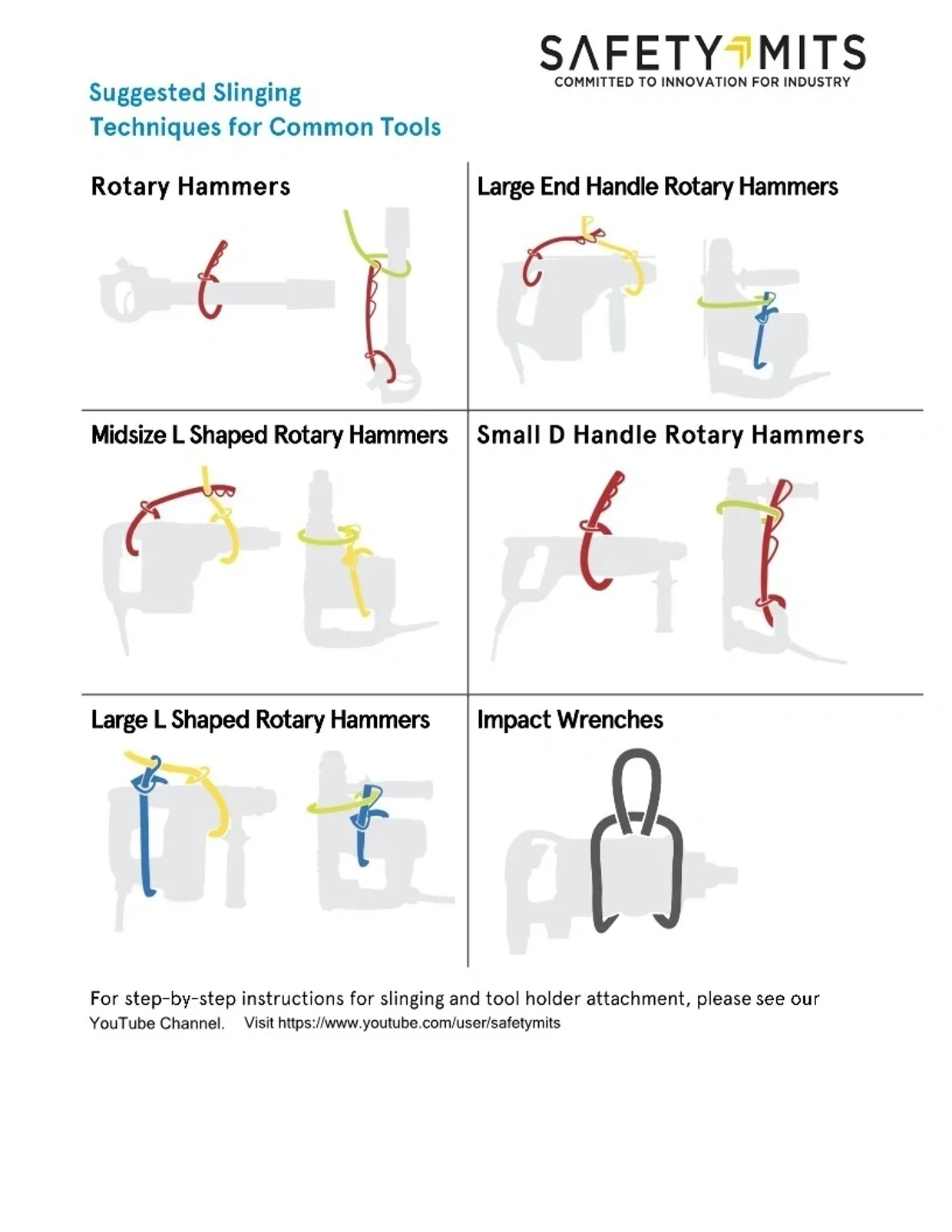

For step by step instructions for slinging and tool holder attachment for mining equipment and industrial equipment, please visit our Safety Mits YouTube Channel.

Zero G workshop trolley 19kg working tool payload

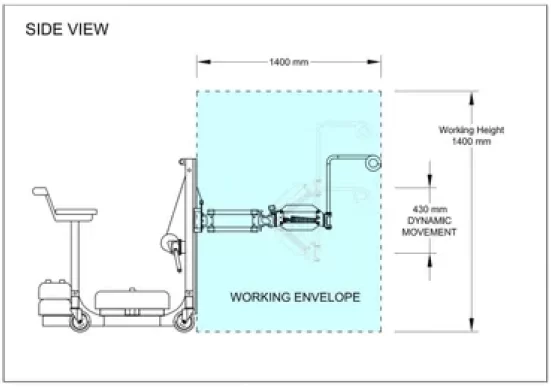

Sideview Img

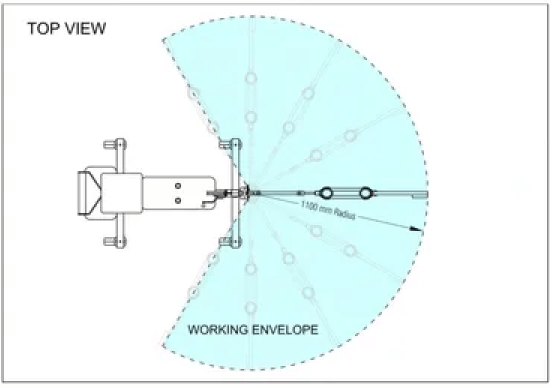

Topview Img
Rs=w 1240,cg True
